OUR PRODUCTS
TECNOVILL has extensive experience in the design and manufacture of machinery, specialized in the fruit and vegetable sector.

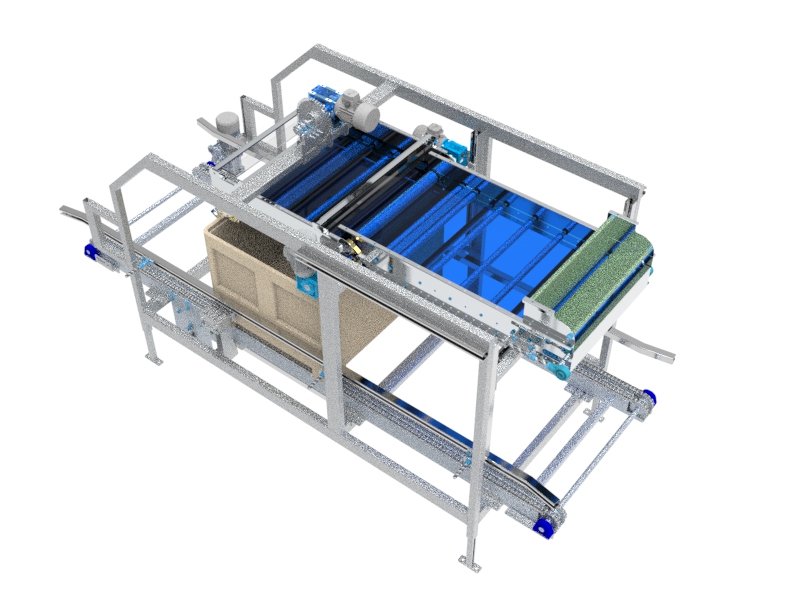

BINS VOLUMETRIC FILLER VBV-20
Machine designed for bins filling automation. The set is made up of the following elements:
- Belt conveyor for fruit feeding.
- Articulated conveyor with pneumatic elements and detection sensors for filling bins.
- Lower chain conveyor for transporting empty bins to the filling area. The bin once located in the filling area, will act by sequential advances that will help a better distribution of the fruit during filling.
- Control panel with programmable automaton to order / coordinate movements. Optionally, the system can be completed, with a bins unstacker and a stacker for full bins.
Dimensions
| Length (mm) | 5872 |
| Width (mm) | 1590 |
| High (mm) | 2290 |
| Weight (mm) | 1187 |
| Area (m²) | 9.34 |
Consumption
| Electric (kW) | 2.75 |
| Air (l/h) | |
| Pressure (Bar) | |
| Gasoil (l/h) | |
| Gas (m³/h) |
Download the technical sheet here.
